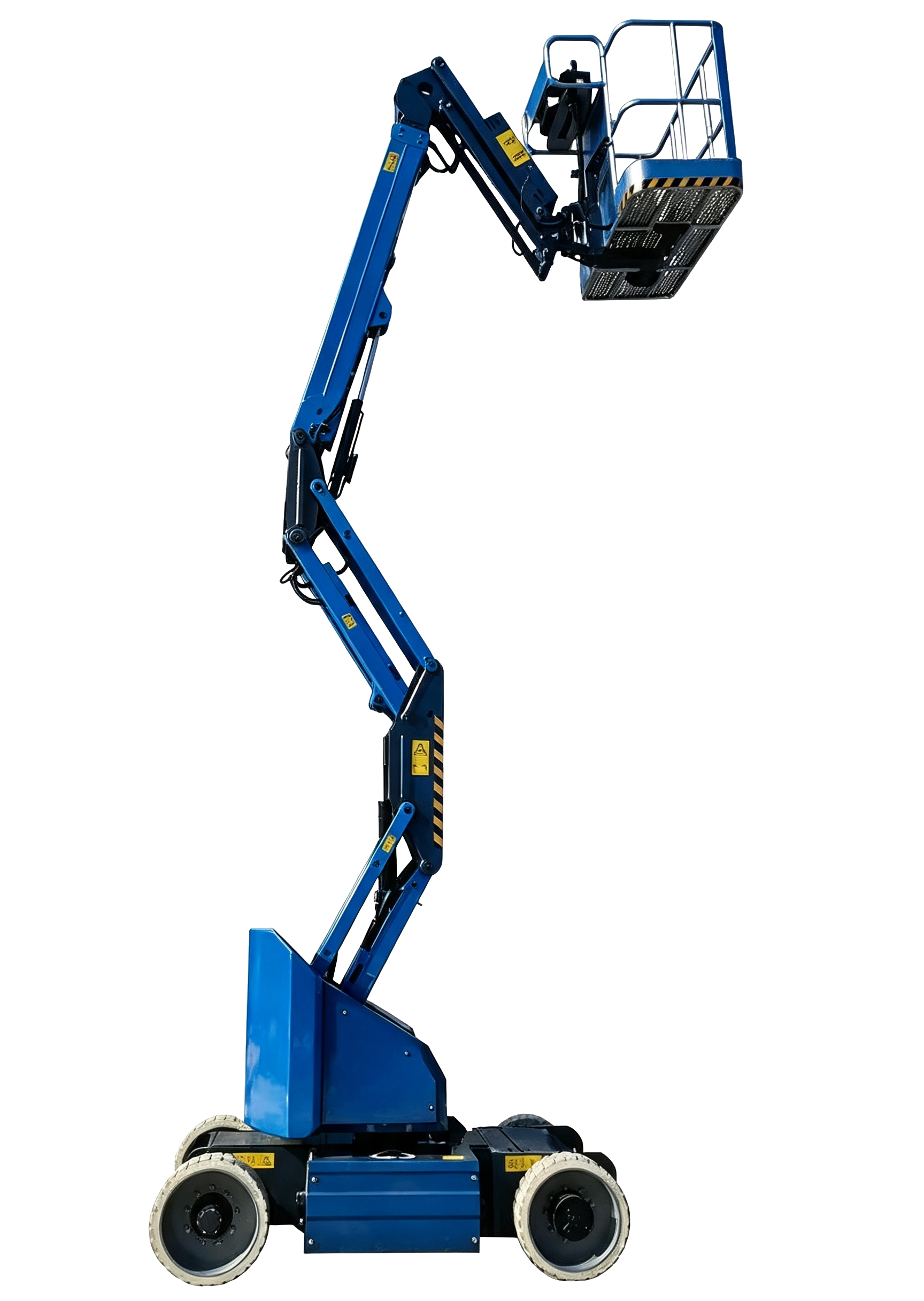

Articulated Boom Lift
Independently developed by Youxi Technology, this self-propelled electric articulated boom lift delivers a 9–22m working height and 230–340kg load capacity. Lightweight, compact and energy-efficient, it offers long battery endurance and superior obstacle-crossing performance with a sigma combined boom.Equipped with a 160° rotatable extendable platform and collapsible guardrails, it expands working coverage and enables easy transport. Precise electro-hydraulic control and full safety guarantees ensure stable operation for municipal, airport and port maintenance.
Load capacity( kg):230-340
Lift Height (m):9-22
- Email: sales@youxilift.com
- Phone: (+86) 0531-67808999
Product Introduction
Independently developed by Youxi Technology, this self-propelled electric articulated boom lift features a working height of 9–22 meters and a load capacity of 230–340kg. Adopting a lightweight, compact and energy-saving design, the equipment boasts excellent battery endurance and stable operating performance.
Fitted with a sigma combined boom structure, it supports flexible vertical lifting and horizontal extension with outstanding obstacle-crossing ability, suitable for complex and hard-to-reach working areas. The 160° rotatable and extendable working platform greatly broadens operation coverage, while collapsible guardrails simplify transportation and relocation.
With precise electro-hydraulic proportional control and comprehensive safety systems including tilt protection and emergency lowering, it achieves full-range stable operation, ideal for installation and maintenance in municipal, airport and port industries.
Product Parameters
| Model | ABL1207 | ABL1307 | ABL1608 | ABL1809 | ABL2011 | ABL2312 |
| Max. Working Height | 11.5m | 12.52m | 16m | 18m | 20.2m | 22.5m |
| Max. Platform Height | 9.5m | 10.52m | 14m | 16m | 18.2m | 20.5m |
| Max. Overreach Height | 4.2m | 4.65m | 7.0m | 7.3m | 8.0m | 9.4m |
| Max. Working Radius | 6.5m | 6.78m | 8.05m | 8.6m | 11.1m | 11.8m |
| Platform Dimensions | 1.4×0.7m | 1.4×0.7m | 1.4×0.76m | 1.4×0.76m | 1.8×0.76m | 1.8×0.76m |
| Overall Length (Folded) | 5.2m | 5.6m | 6.5m | 7.2m | 8.49m | 8.99m |
| Overall Width | 1.27m | 1.50m | 1.76m | 1.90m | 2.49m | 2.49m |
| Overall Height (Folded) | 2.0m | 2.0m | 2.0m | 2.0m | 2.38m | 2.38m |
| Wheelbase | 1.65m | 1.95m | 2.0m | 2.01m | 2.5m | 2.5m |
| Ground Clearance (Center) | 0.14m | 0.14m | 0.25m | 0.25m | 0.3m | 0.3m |
| Rated Load Capacity | 200kg | 200kg | 230kg | 230kg | 256kg/350kg | 256kg/350kg |
| Platform Slewing Range | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib Luffing Range | ±70° | ±70° | ±70° | ±70° | ±70° | ±70° |
| Travel Speed (Stowed) | 4.8km/h | 4.8km/h | 5.1km/h | 5.0km/h | 4.8km/h | 4.5km/h |
| Gradeability | 35% | 35% | 30% | 30% | 45% | 40% |
| Max. Operating Slope | 3° | 3° | 3° | 3° | 3° | 3° |
| Outside Turning Radius | 3.3m | 4.08m | 3.2m | 3.45m | 5.0m | 5.0m |
| Drive & Steering Type | 2×2 | 2×2 | 2×2 | 2×2 | 4×2 | 4×2 |
| Overall Weight | 5410kg | 4800kg | 5960kg | 6630kg | 9100kg | 10000kg |
| Battery | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah |
| Hydraulic Pump Motor Power | 4kw | 4kw | 4kw | 4kw | 12kw | 12kw |
| Travel Motor Power | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw |
| Lithium Battery | Optional | |||||
| Range Extender | Optional | |||||
| Insulated Work Basket | Optional | |||||
Main Configuration List
| Main Configuration List | |||
| Proportional Control | Automatic Braking System | Buzzer | Extending Platform |
| Automatic Pothole Protection System | Emergency Lowering System | Horn | Charging Protection System |
| Platform Self-locking Gate | Emergency Stop Button | Lowering Protection System | Full Stroke Travel |
| Burst-proof Hydraulic Hose System | Safety Maintenance Support Strut | Non-marking Tyres | Fault Diagnosis System |
| 4x2 Drive | Tilt Protection System | Standard Forklift Pockets for Transportation | Folding Guardrail |
