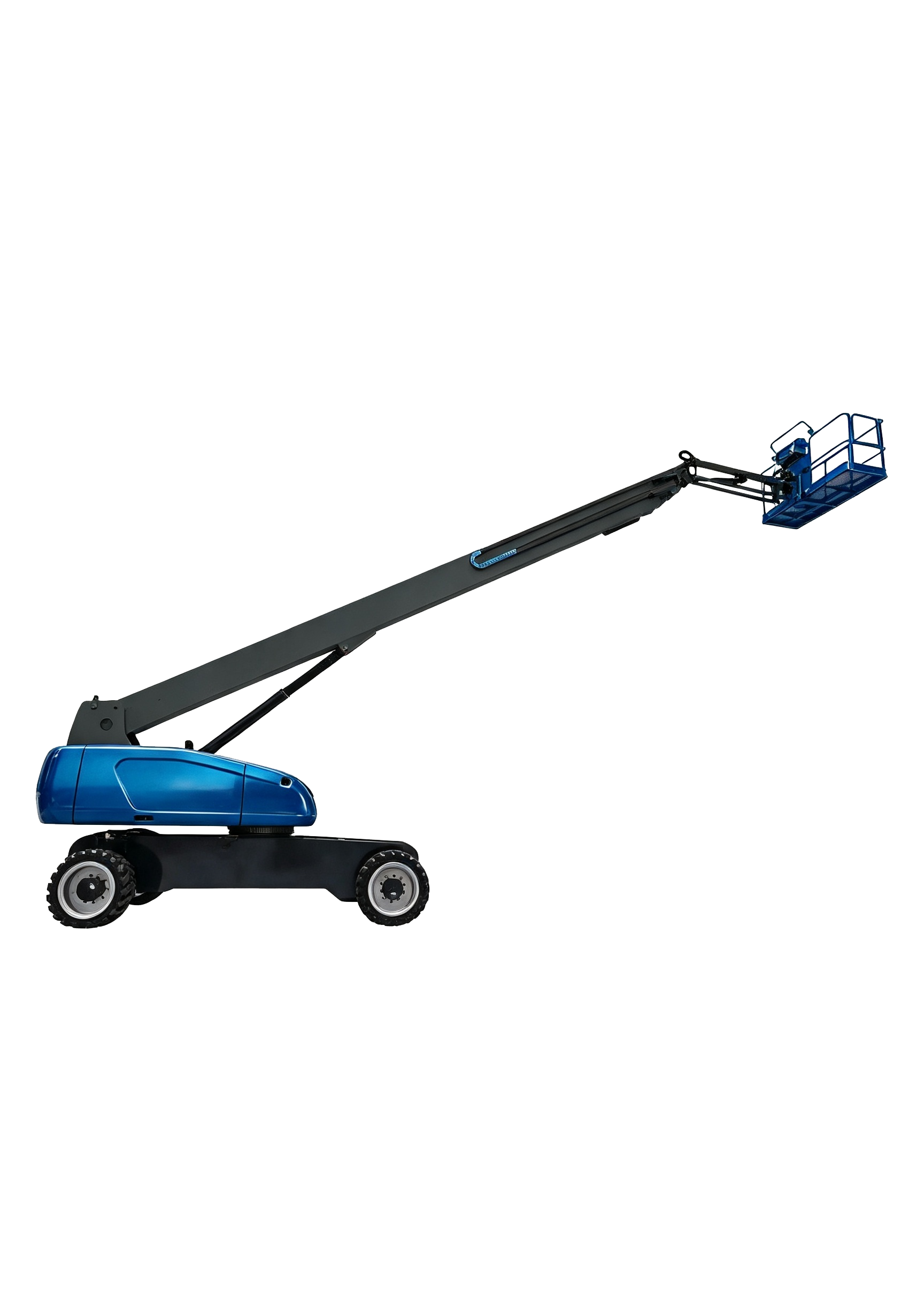

Diesel Telescopic Boom Lift


Youxi self-developed diesel straight-boom aerial work platform features 28-48m working height and 300-480kg load capacity. Powered by diesel without external power supply, it delivers strong power and fast speed, adapting to humid, corrosive, dusty, high and low-temperature environments. Equipped with moment limitation, emergency power unit and anti-misoperation protection, it realizes height-linked speed adjustment with long outreach, ideal for outdoor aerial work.
Load capacity( kg):300-480
Lift Height (m):28-48


Product Introduction

Independently developed by Youxi, the diesel straight-boom aerial work platform boasts a working height of 28-48m and a load capacity of 300-480kg. Fully diesel-powered without external electricity supply, it provides strong power and fast traveling speed, suitable for harsh environments with humidity, corrosion, dust, high and low temperatures. Equipped with moment limiter, emergency power unit and anti-misoperation system, it ensures comprehensive operational safety. It can travel safely at any boom position with height-adaptive speed, featuring long outreach and high efficiency, perfectly serving shipyards, construction, demolition and maintenance outdoor aerial projects.


Product Parameters


Model DT3021 DT3422 DT4124 DT4424 DT4824 DT5826
Dimensions
Max. working height 30m 34m 40.4m 44m 48m 58m
Max. Platform Height 28m 32m 38.4m 42m 46m 56m
Max. Working Radius 20.6m 21.4m 24m 24m 23.6m 26m
Platform Size 2.44×0.91m
Overall Length 12.79m 14.17m 14.1m 13m 17.8m 14.9m
Overall Width 2.58m 2.5m 2.49m 2.49m 4.1m 5.1m
Overall Height 2.87m 3.09m 3.08m 3.1m 3.14m 3.15m
Wheelbase 3m 3.66m 3.96m 3.96m 3.96m 5.6m
Ground Clearance 0.43m 0.4m 0.28m 0.28m 0.4m 0.38m
Performance
Max. Persons on Platform 2
Rated Load Capacity 300kg (Unrestricted) 480kg (Restricted)
Platform Rotation Range ±90°
Turntable Rotation 360° Continuous Slewing
Platform Leveling Auto
Travel Speed – Folded 5km/h 5km/h 5km/h 4.4km/h 4.4km/h 4.4km/h
Travel Speed – Lifted 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Travel Gradeability 24°(45%) 24°(45%) 24°(45%) 21.8°(40%) 21.8°(40%) 21.8°(40%)
Inside Turning Radius 3.59m 4.14m 4.14m 4.14m 4.14m 7.6m
Outside Turning Radius 5.95m 6.56m 7.02m 7.02m 7.02m 10m
Drive&Steering Type 4×2 4×4 4×4 4×4 4×4 4×4
Tyre Size 385/65-22.5 385/65-22.5 385/65-22.5 385/65-22.5 445/50D710 445/65-24
Power
Engine Cummins Cummins Cummins Cummins Cummins Cummins
Engine Power 53kw/2200rpm 54kw/2400rpm 54kw/2400rpm 53kw/2200rpm 54kw/2400rpm 74kw/2400rpm
Fuel Capacity 151L 151L 151L 151L 151L 200L
Control Voltage 12V 12V 12V 12V 12V 24V
Weight
Overall Weight 16800kg 19250kg 22900kg 24600kg 23110kg 27900kg
