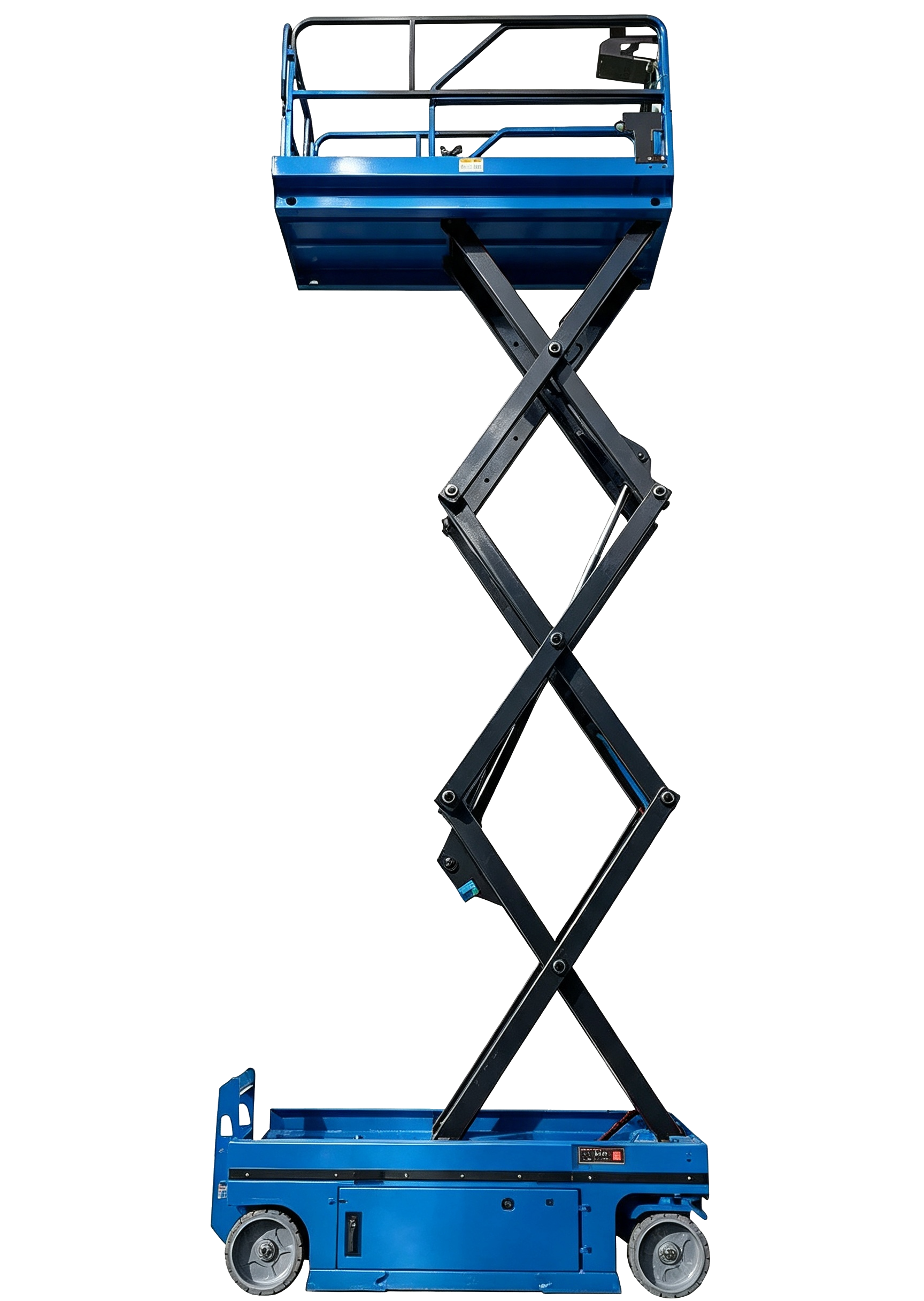

Electric scissor lift
Youxi self-propelled scissor lifts are battery-powered, capable of automatic moving, lifting and steering with long endurance and quiet operation. The working height ranges from 5.8m to 15.8m and load capacity from 113kg to 500kg. Made of high-quality structural steel, it is equipped with multiple safety protection systems. Operators control all movements on the platform to cut labor costs and improve efficiency, an ideal aerial work solution.
Load capacity( kg):113-500
Lift Height (m):5.8-15.8
- Email: sales@youxilift.com
- Phone: (+86) 0531-67808999
Product Introduction
Youxi specializes in manufacturing self-propelled scissor lifts fully powered by batteries, which can move, lift and steer independently with extended working hours and ultra-quiet running performance. Its working height is 5.8-15.8 meters and rated load capacity 113-500 kilograms, constructed with premium thickened structural steel. It is fully fitted with platform self-locking gate, fault diagnosis system, tilt protection, pipeline anti-explosion device, charging protection and automatic pothole protection system. Operators can control lifting, forward, backward and steering directly on the platform, greatly reducing labor cost and working time. It is a highly reliable and perfect equipment for all kinds of aerial working projects.
Product Parameters
| Model | SL0607 | SL0808 | SL1009 | SL1211 | SL1411 | SL1611 |
| Dimensions | ||||||
| Max. working height | 6.2m | 7.8m | 9.8m | 11.8m | 13.8m | 15.8m |
| Max. Platform Height | 4.2m | 5.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| Platform Length | 1.29m | 1.68m | 2.3m | 2.3m | 2.3m | 2.7m |
| Platform Width | 0.7m | 0.74m | 0.81m | 1.15m | 1.15m | 1.15m |
| Overall Length | 1.46m | 1.83m | 2.45m | 2.45m | 2.45m | 2.85m |
| Overall Width | 0.76m | 0.76m | 0.85m | 1.18m | 1.18m | 1.36m |
| Overall Height (Guardrail Unfolded) | 2.05m | 2.18m | 2.36m | 2.48m | 2.6m | 2.87m |
| Overall Height (Guardrail Folded) | 1.67m | 1.8m | 1.76m | 1.88m | 2.0m | 2.3m |
| Platform Extension Size | 0.6m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Wheelbase | 1.11m | 1.36m | 1.92m | 1.92m | 1.92m | 2.26m |
| Ground Clearance (Stowed / Lifted) | 0.083m/0.016m | 0.083m/0.016m | 0.1m/0.02m | 0.1m/0.02m | 0.1m/0.02m | 0.1m/0.02m |
| Performance | ||||||
| Max. Persons on Platform | 2 | 2 | 2 | 2 | 2 | 2 |
| SWL | 230kg | 230kg | 230kg | 320kg | 320kg | 230kg |
| SWL‑Extension Platform | 90kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Gradeability (Stowed) | 25% | 25% | 25% | 25% | 25% | 25% |
| Inside / Outside Turning Radius | 0/1.39m | 0/2.2m | 0/2.8m | 0/2.8m | 0/2.8m | 0/3.3m |
| Lifting / Lowering Speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Drive Mode | 2×2 | 2×2 | 2×2 | 2×2 | 2×2 | 2×2 |
| Tire Type | Solid Non‑marking Tire | Solid Non‑marking Tire | Solid Non‑marking Tire | Solid Non‑marking Tire | Solid Non‑marking Tire | Solid Non‑marking Tire |
| Tire Size | Φ305×100mm | Φ305×100mm | Φ380×127mm | Φ380×127mm | Φ380×127mm | Φ381×127mm |
| Power | ||||||
| Battery | 2x12V/80Ah | 4x6V/200Ah | 4x6V/200Ah | 4x6V/200Ah | 4x6V/200Ah | 4x12V/280Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/36A |
| Hydraulic System | ||||||
| Hydraulic Oil Capacity | 5L | 10L | 20L | 20L | 20L | 25L |
| Weight | ||||||
| Overall Weight | 880kg | 1500kg | 2100kg | 2800kg | 2900kg | 3900kg |
Main Configuration List
| Main Configuration List | |||
| Proportional Control | Automatic Braking System | Buzzer | Extending Platform |
| Automatic Pothole Protection System | Emergency Lowering System | Horn | Charging Protection System |
| Platform Self-locking Gate | Emergency Stop Button | Lowering Protection System | Full Stroke Travel |
| Burst-proof Hydraulic Hose System | Safety Maintenance Support Strut | Non-marking Tyres | Fault Diagnosis System |
| 4x2 Drive | Tilt Protection System | Standard Forklift Pockets for Transportation | Folding Guardrail |
FAQ
A: As a professional integrated manufacturer focusing on the R&D, production and sales of industrial and construction elevators, we have no middleman markup, so our product pricing holds strong market competitiveness. We adhere to the principle of high cost performance, strictly control production costs while adopting high-quality raw materials and advanced production technology to ensure stable product quality and long service life. We provide flexible pricing schemes for standard and customized elevators respectively. You can send us your specific project demands, and our professional sales team will offer you an accurate, transparent and customized quotation.
A: Yes, we sincerely welcome customers from all over the world to visit our modern standardized production base. Our factory covers a large production area, equipped with advanced automated production equipment and complete testing devices. During your visit, our professional team will arrange a full-process guided tour, including elevator production workshops, precision processing centers, quality testing laboratories and product exhibition halls. We will fully display our mature production technology, strict production management system and strong independent R&D strength, and answer all your questions about elevator production and quality control on site.
A: To tailor the most suitable elevator solution and accurate quotation for your project, we need you to provide detailed demand information. First, confirm the elevator type (such as construction passenger elevators, cargo elevators, industrial lifting elevators, etc.) and specific specifications you need. Second, clarify the actual application scenarios, including building construction, factory cargo handling, bridge engineering, mining engineering and other usage environments. In addition, please inform us of key parameters such as rated load capacity, lifting height, operating speed, working frequency, and special customization demands (such as anti-corrosion treatment, explosion-proof function, intelligent control system, special size adjustment) and special environmental adaptation requirements (high temperature, low temperature, rainy and humid areas). The more detailed the information, the more accurate the solution we provide.
A: Absolutely. Quality is the core of our product development and production. All our elevator products implement a full-cycle, multi-layer strict quality inspection system from raw material entry to finished product delivery. The whole process includes raw material incoming inspection, component processing testing, semi-finished product assembly inspection, running debugging test and final finished product comprehensive performance detection. We strictly eliminate all unqualified products to ensure that every delivered elevator meets national industry standards and international safety specifications. Meanwhile, we fully support and accept authorized third-party institutional quality inspection and testing. All inspection reports can be provided to customers to guarantee the safety, stability and durability of the equipment.
A: Our delivery time is divided into standard and customized cycles. For conventional standard elevator models in stock, we can complete delivery within 3-15 working days after the order is confirmed and the deposit is received. For non-standard customized elevators, large-scale complete sets of lifting equipment and bulk order products, the delivery cycle will be reasonably adjusted according to the customization difficulty, production process complexity and order quantity. During the whole production period, we will take the initiative to follow up the production progress regularly, feed back the processing, debugging and packaging status to customers in real time, and ensure timely and safe delivery.
A: To facilitate the cooperation of global customers, we support a variety of safe, flexible and international common payment methods, including T/T telegraphic transfer, sight L/C letter of credit, Western Union and cash payment. While adhering to standardized payment processes, we also provide personalized payment policy support for long-term cooperative partners, large-volume orders and project-specific customers. We can negotiate favorable and flexible payment terms according to the actual cooperation situation to reduce your capital pressure and ensure smooth and efficient cooperation on both sides.
